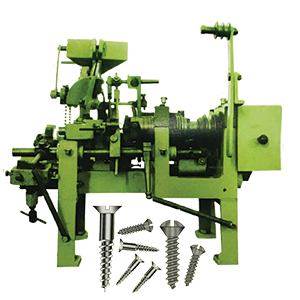

Automatic Thread Cutting Machine |
|
|
| |
|
|
A Thread Cutting Machine job is to cut thread on blank of wood screws. The head slotting blanks are placed in a hopper at top from which automatic side down with the aid of feeder. A picker hold each blank one and feed into a chuck and tool cut thread on the blank and threaded screws falls down in a receptable.
Thread cutting machines produce threads after cutting and removing material for getting thread-shape as it generates screw threads while being automated. With quality-performance by Saggu Ind. Corp, Thread cutting machines are in demand from India. |
| |
| SPECIFICATIONS |
| SICTC No. |
Length of bolt |
Wire Size S.W.G. |
Production P.M. |
Motor H.P. & R.P.M. |
| 1. |
3/8" - 1½" |
9 - 14 |
15 - 25 |
3/4 X 1440 |
| 2. |
1/2" - 2" |
4 - 12 |
10 - 15 |
1 X 1440 |
| 3. |
1/2" - 3" |
2 - 12 |
9 - 12 |
1½ X 1440 |
| 4. |
1/2" - 4" |
8 - 0 |
4 - 6 |
1½ X 1440 |
| 5. |
2" - 6" |
5 - 0 |
4 - 5 |
2 X 1440 |
| * Design, output, dimensions & weight are subject to modification. |
|
| |
|
|
|
|
